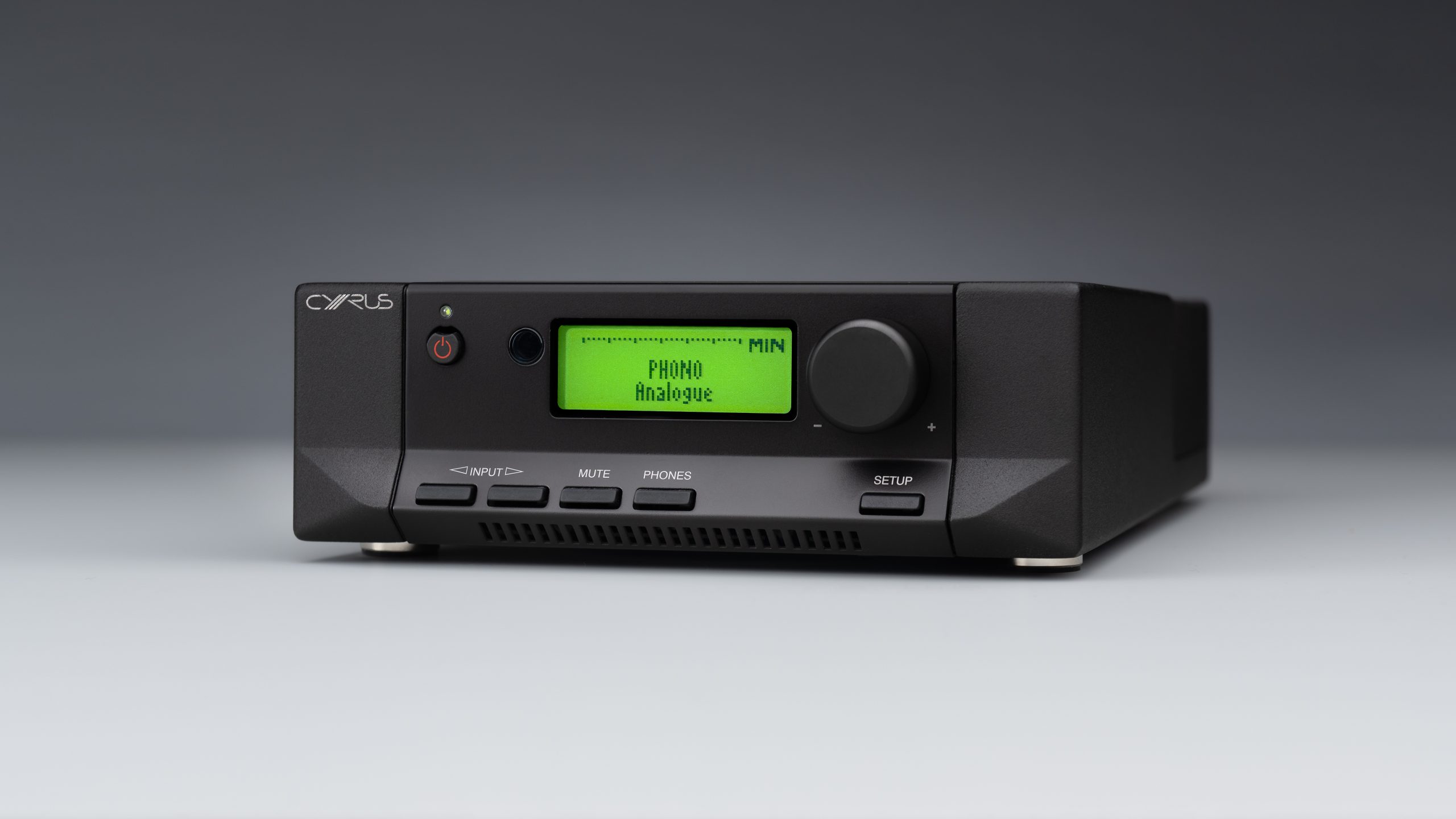

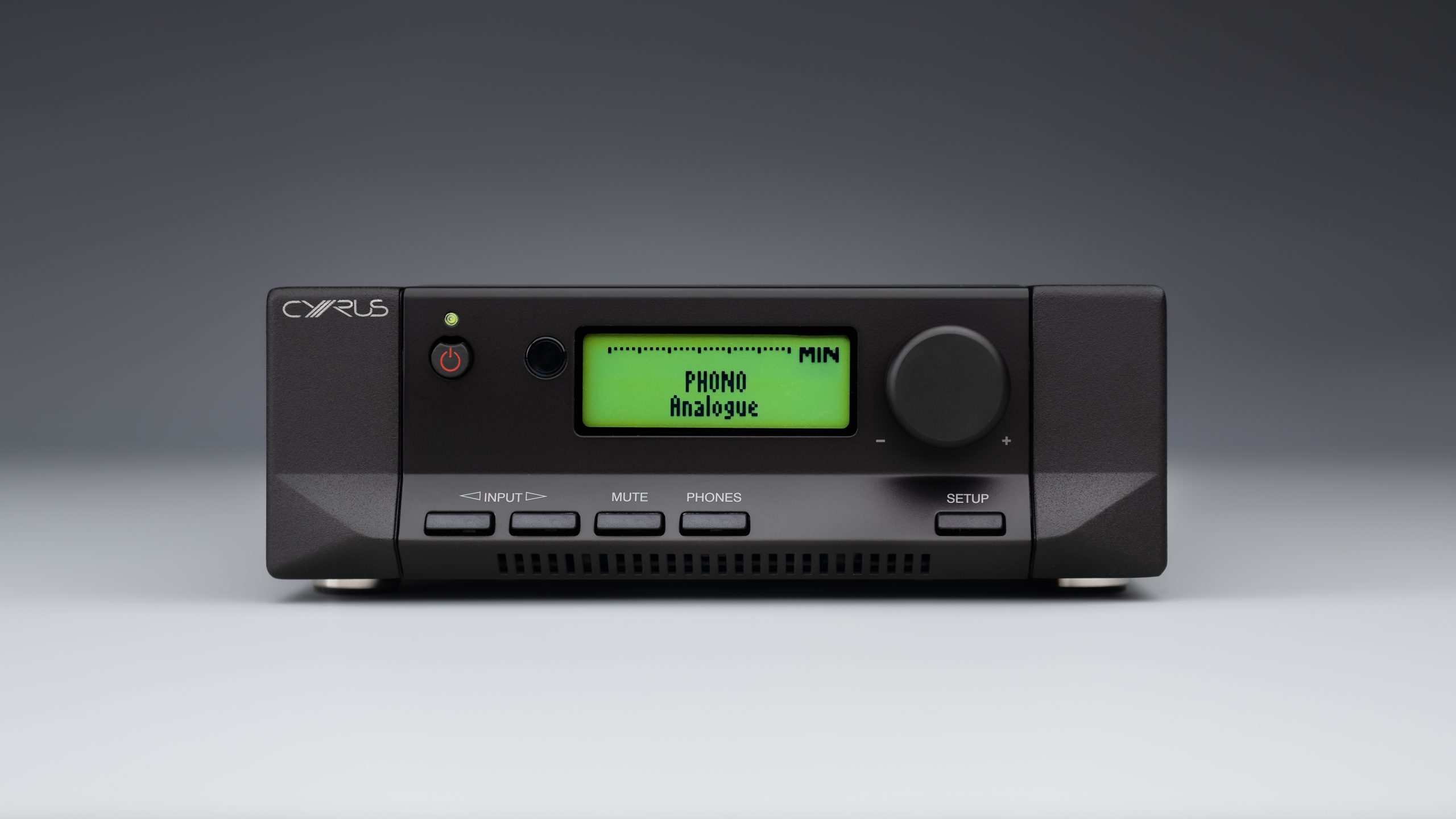

Cyrus Classic AMP Black Integrated Stereo Amplifier

Description

The ‘Classic’ amp’ is the latest update to an integrated amplifier that has been part of the Cyrus product range for over a decade.

The circuit design has been completely re-designed and the majority of the internal components have been upgraded by the Cyrus R+D team.

Which has resulted in sound improvements that will help the Classic series retain a loyal fan base for years to come.

The power amplifier delivers 91W per channel into 6 ohms, a real power house.

The analogue preamp features relay input selection for the five analogue inputs and a precision gain control for volume.

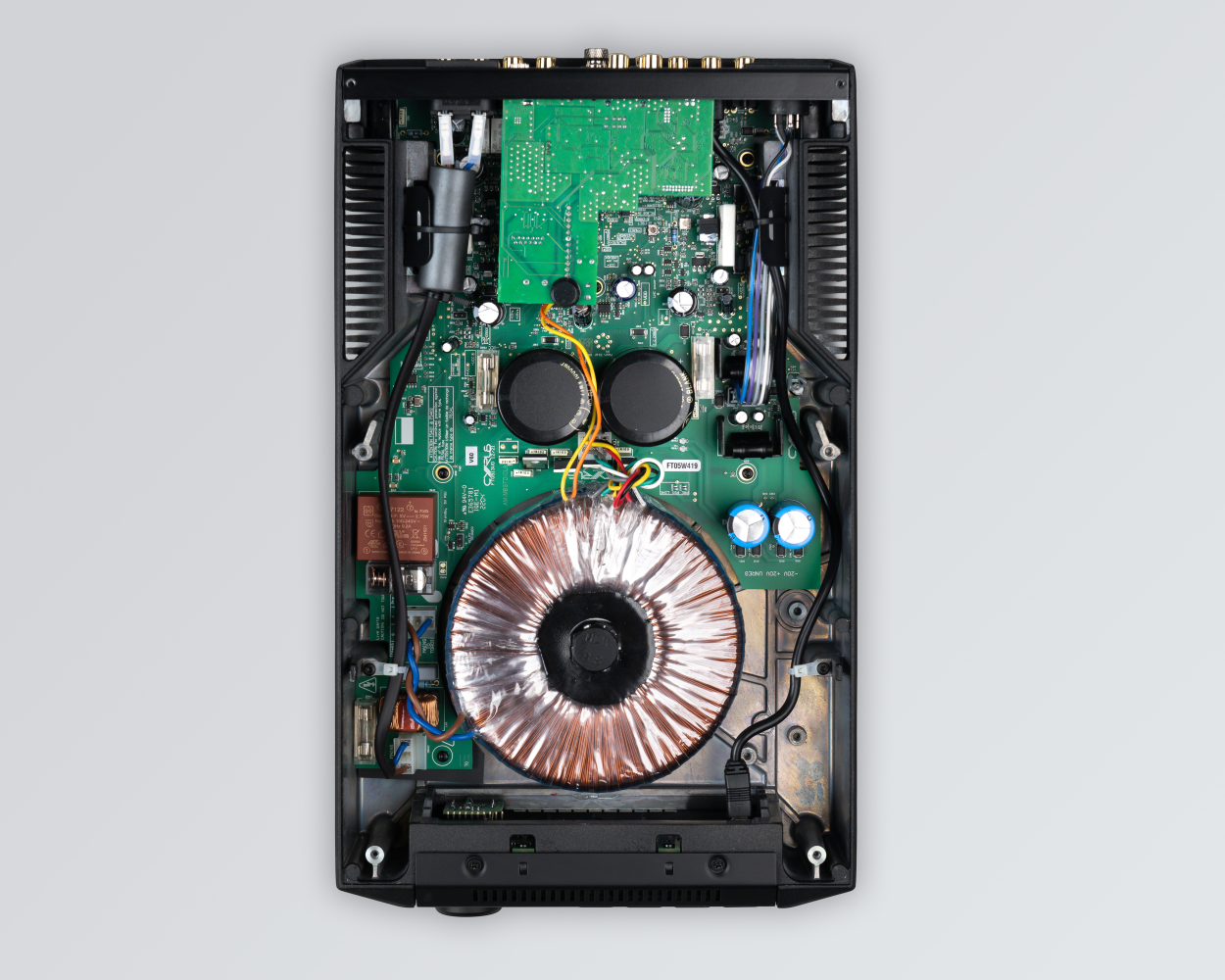

The power supply includes a 304VA toroidal power transformer delivering power to a high capacity power supply reserve.

The pre-amplifier power supply is electrically separated from the power amplifier and driven from its own transformer winding.

Digital control circuits are assigned a separate mains power supply, completely isolated from the signal circuitry.

Phono MM Input / The phono MM input stage design features dual active gain stages and passive RIAA equalisation.

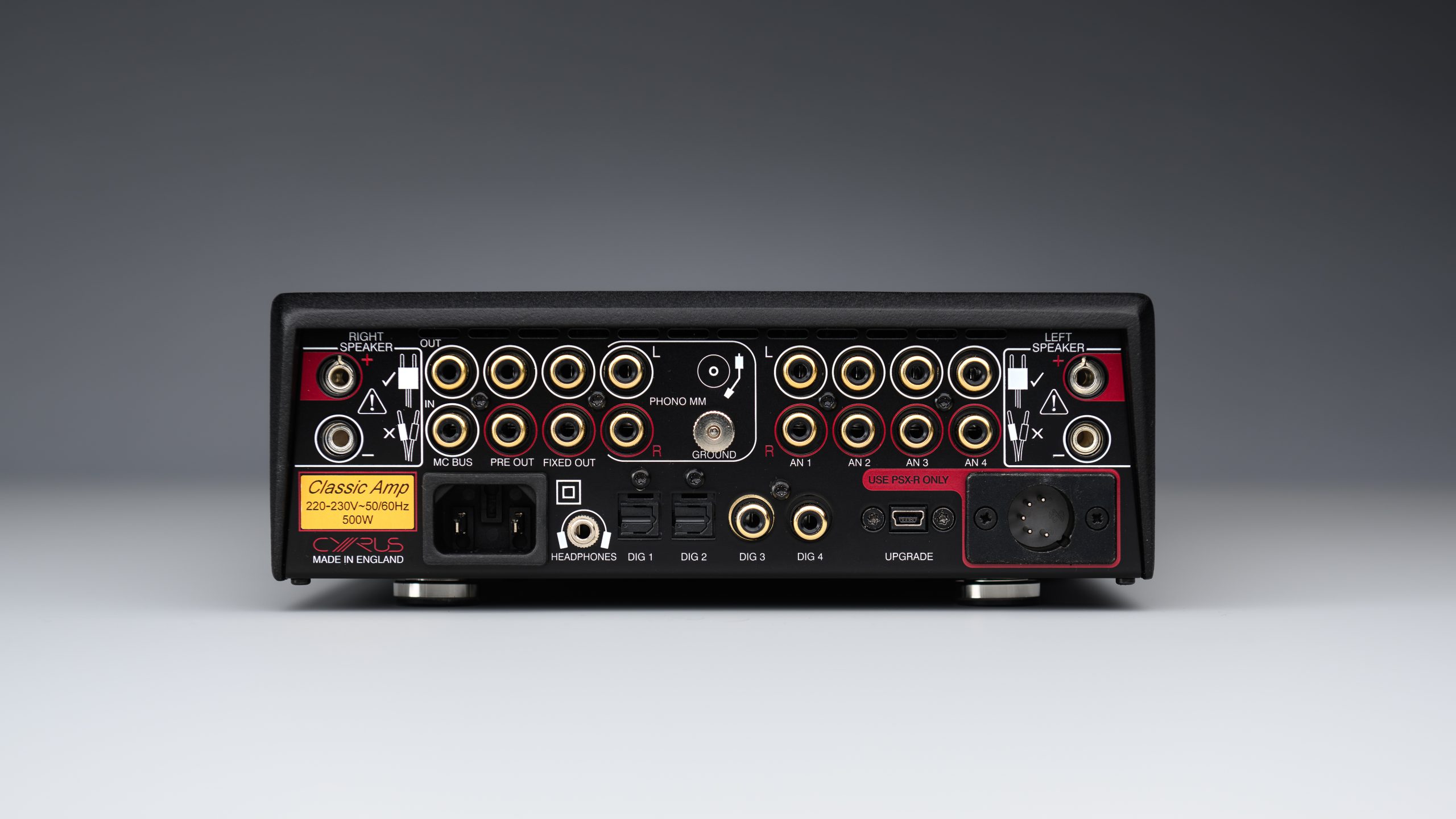

Specification

• 4 x Analogue line level inputs
• 1 x Phono MM input for vinyl turntable
• 2 x Coaxial digital inputs via RCA phono
• 2 x Optical digital inputs via Toslink
• Unbalanced preamplifier outputs
• Headphone output via 3.5mm jack
• PSX-R upgrade connection
• Firmware upgrade port
