Description

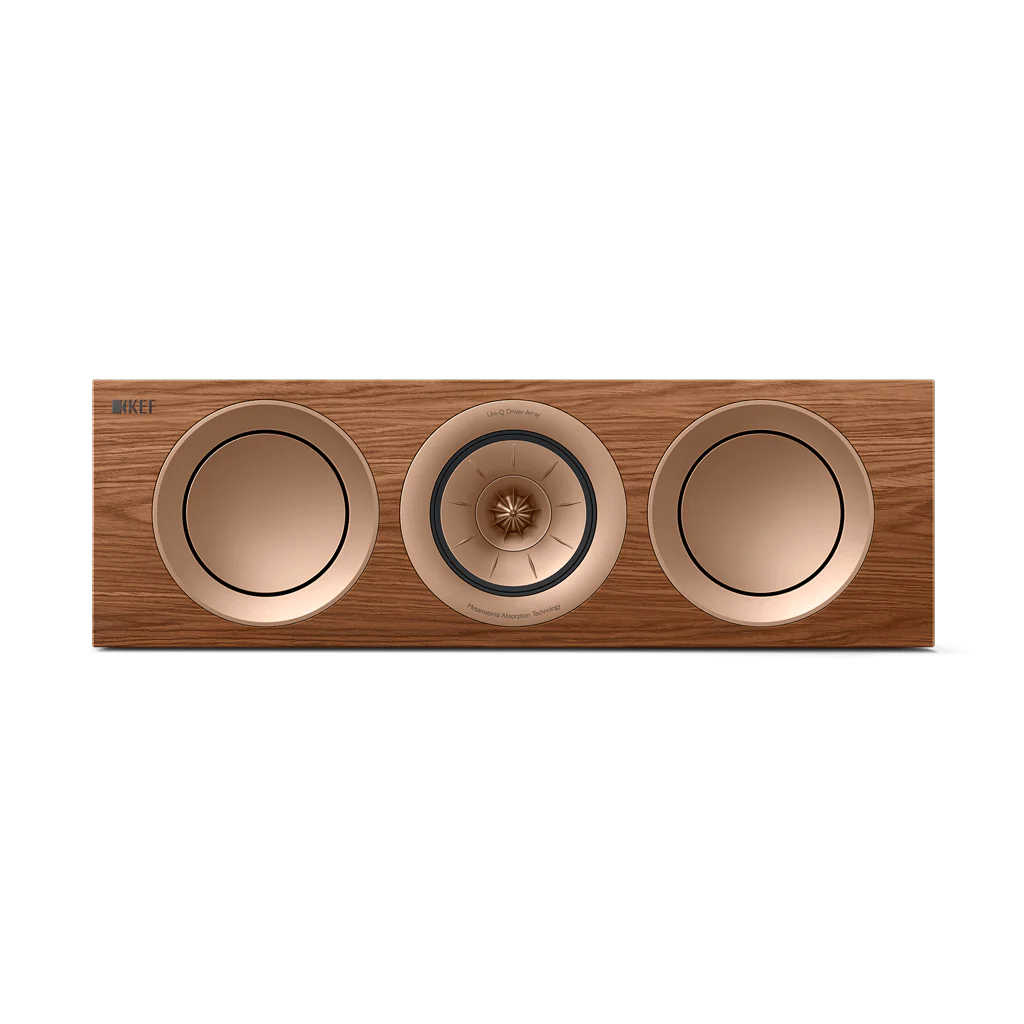

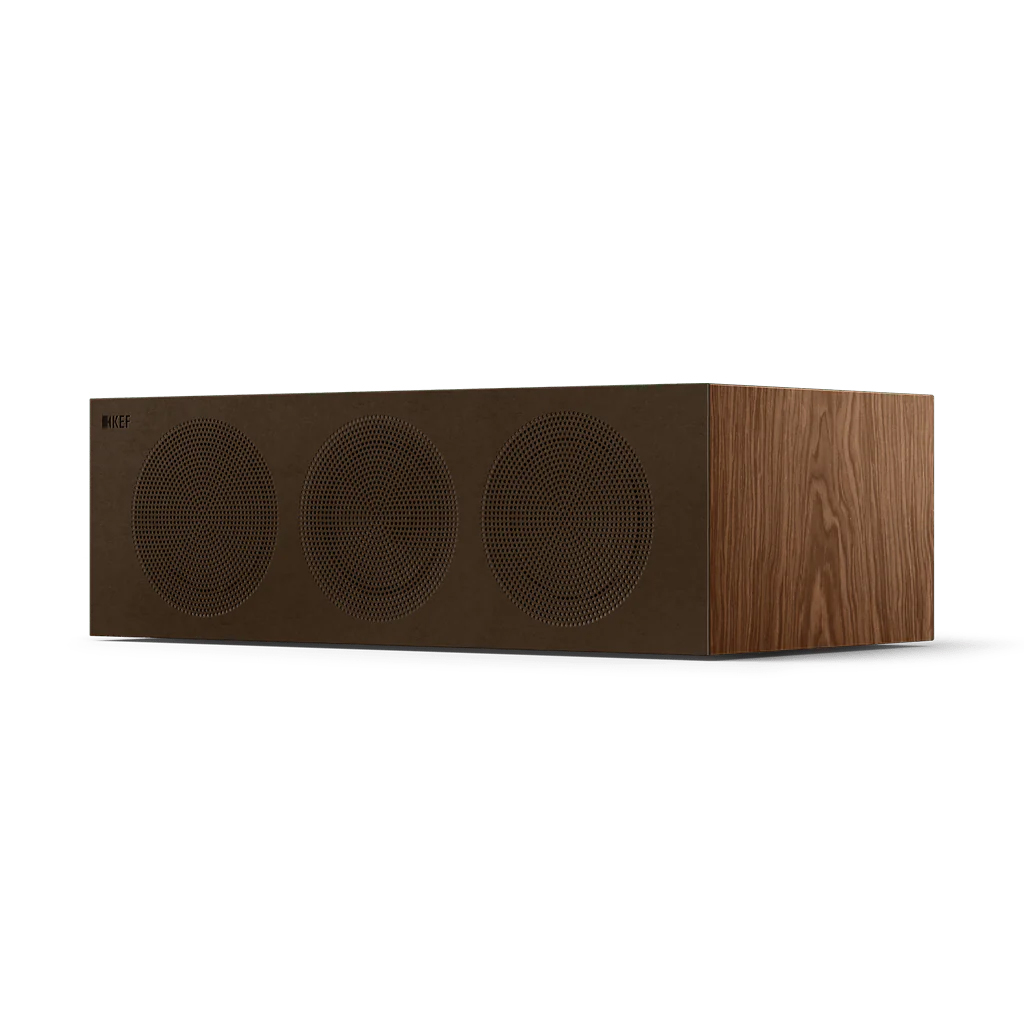

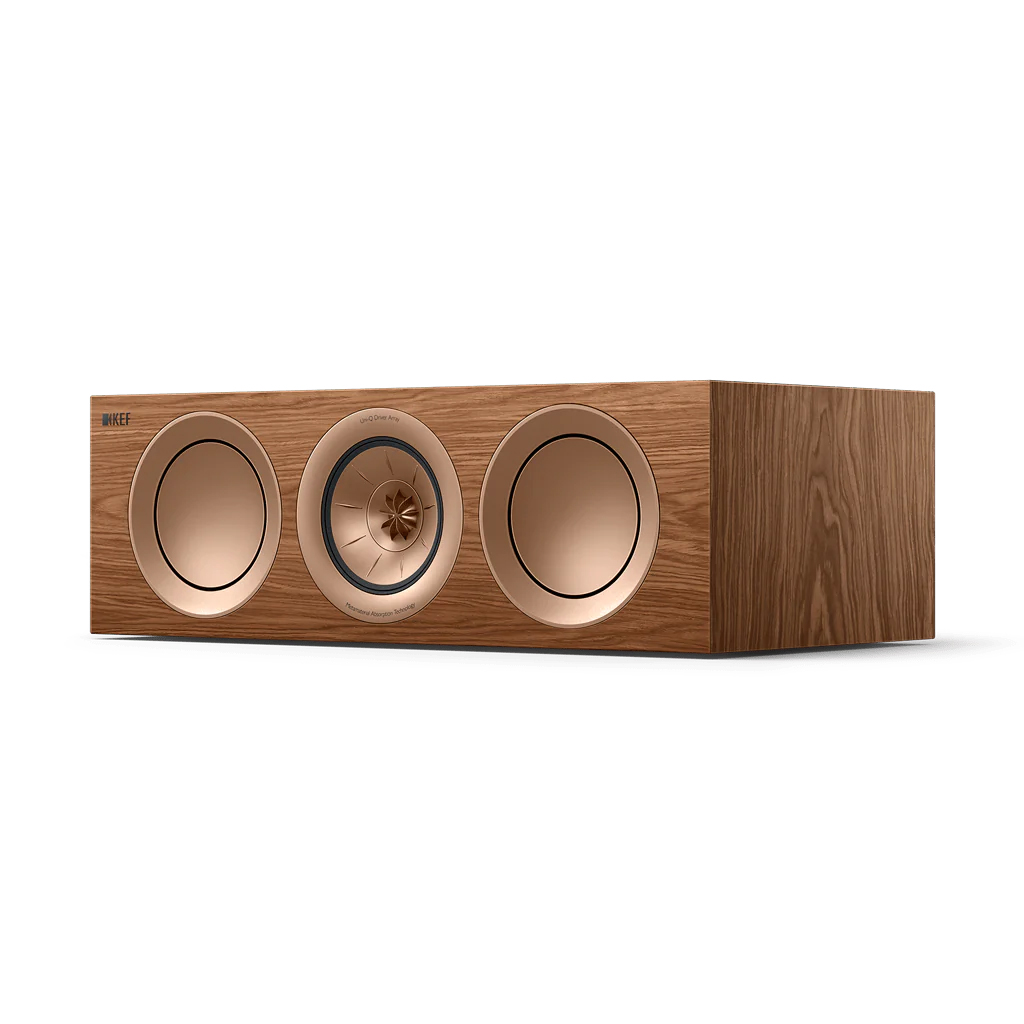

Designed to match any R Series floorstanding speakers, the R2 Meta boasts the 12th generation Uni-Q driver array with MAT and two 5.25” hybrid aluminium bass drivers.
It is compact enough to use in smaller rooms while being capable of high-quality sound with even the most dynamic music and movies.
This design is highly versatile and can be used in an LCR (Left-Centre-Right) configuration.
Specification
MAXIMUM OUTPUT 110 dB
AMPLIFIER REQUIREMENTS 15 – 200W
NOMINAL IMPEDANCE 4 Ω (min. 3.2 Ω)
SENSITIVITY (2.83V/1m) 87 dB
DRIVE UNITS Uni-Q Driver Array:
HF: 25 mm (1 in.) vented aluminium dome with MAT
MF: 125 mm (5 in.) aluminium cone
Bass Unit:
LF: 2 x 130 mm (5.25 in.) hybrid aluminium cone
HF: 25 mm (1 in.) vented aluminium dome with MAT
MF: 125 mm (5 in.) aluminium cone
Bass Unit:
LF: 2 x 130 mm (5.25 in.) hybrid aluminium cone
CROSSOVER FREQUENCY 560 Hz, 2.5 kHz
FREQUENCY RANGE (-6dB) 58 Hz – 50 kHz
DIMENSION (H x W x D) WITH TERMINAL * 175 x 550 x 309 mm
