£1,799.00

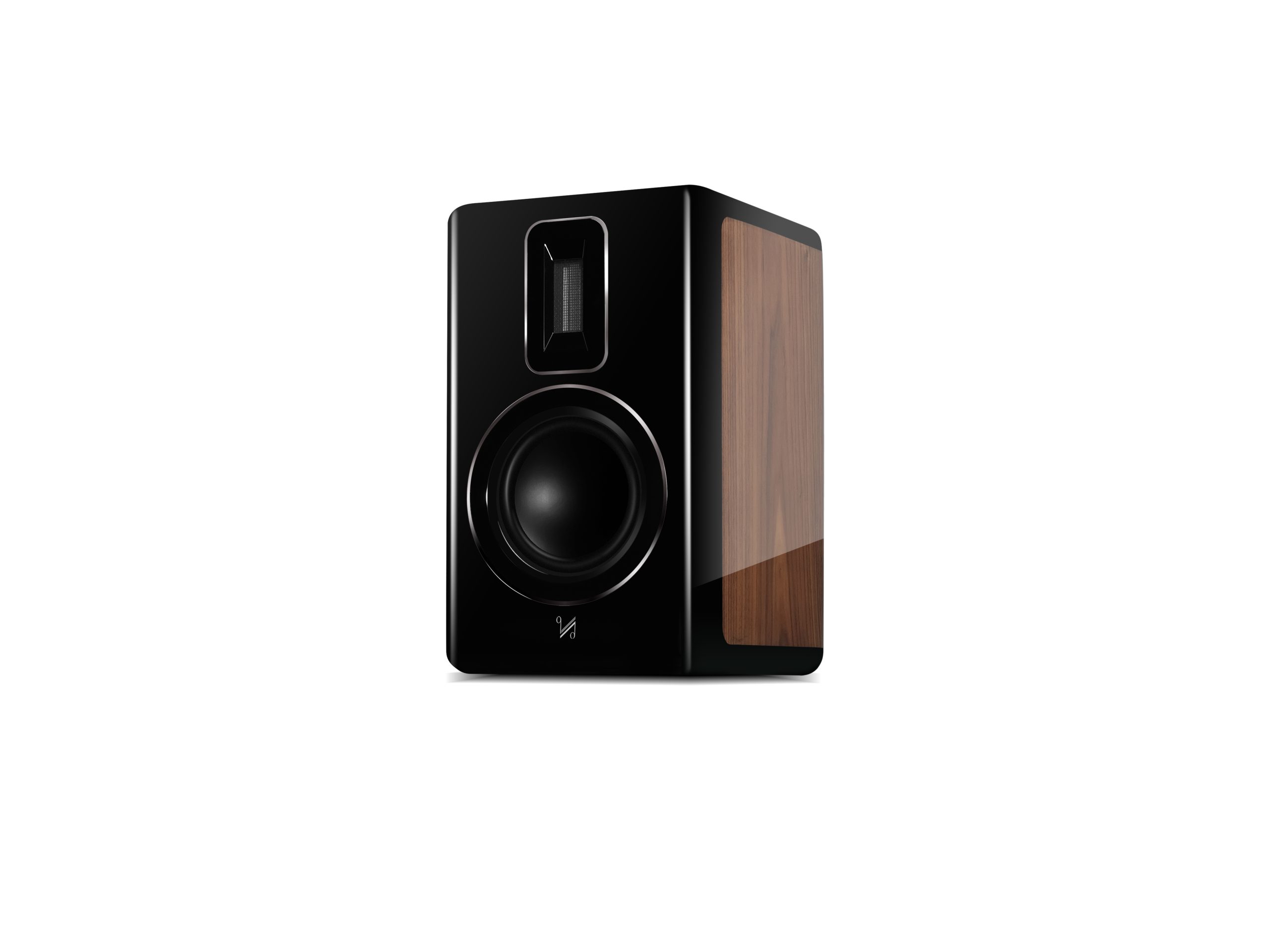

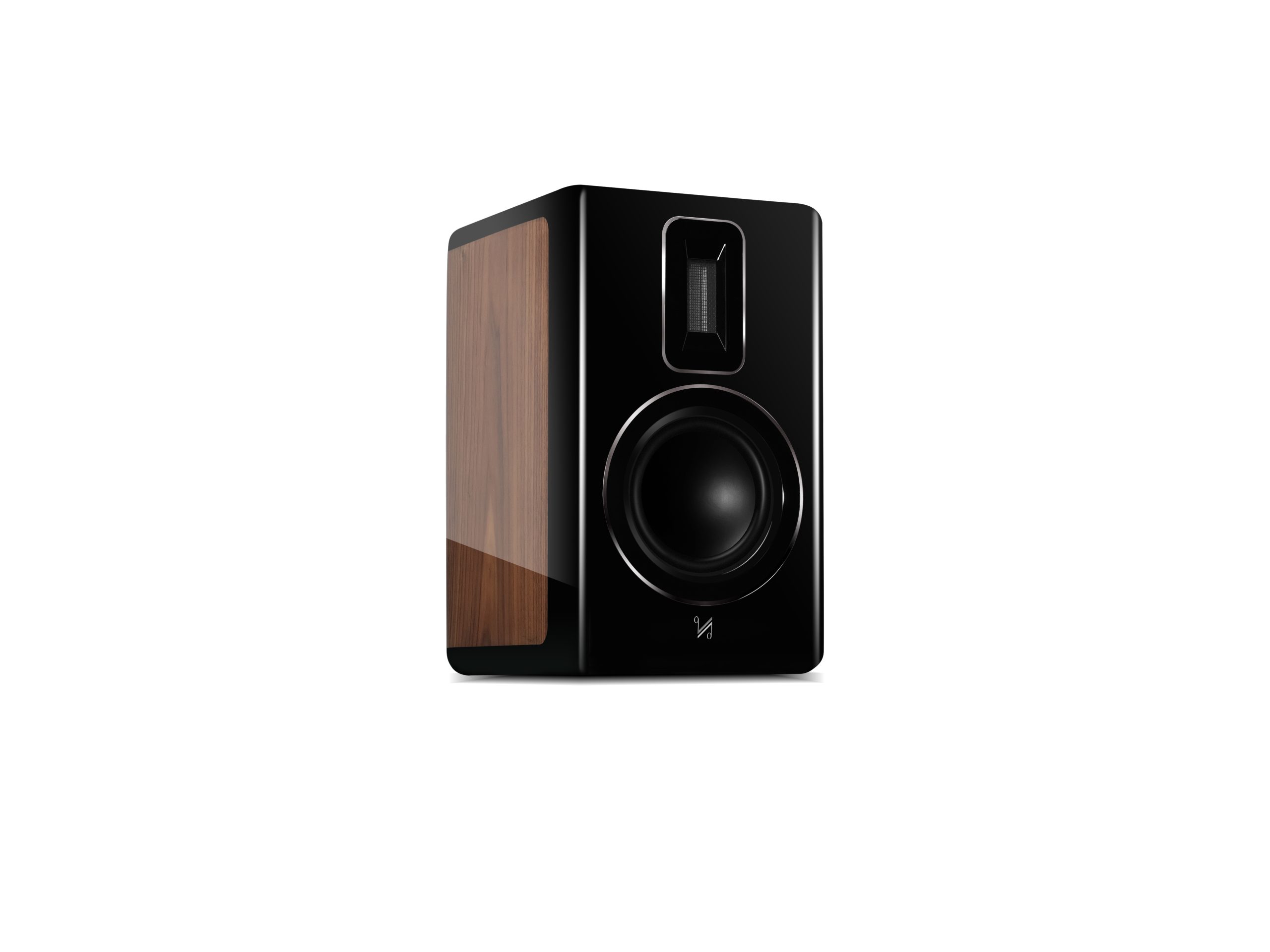

The Revela 1 is a classic bookshelf/stand-mount monitor equipped with a 6.5″ woofer and ribbon HF.
Refined for seamless integration with the ‘True Ribbon’ HF, the smooth diaphragm drivers were purpose selected based on their rigidity and excellent self-damping properties.
A serious statement piece from QUAD, the Revela 1 is the culmination of more than four years of development.
It offers advanced technology, beautiful looks and breath-taking performance.
The Revela series cabinets are skilfully hand-finished to a quality far exceeding that of relative competitors in this class.

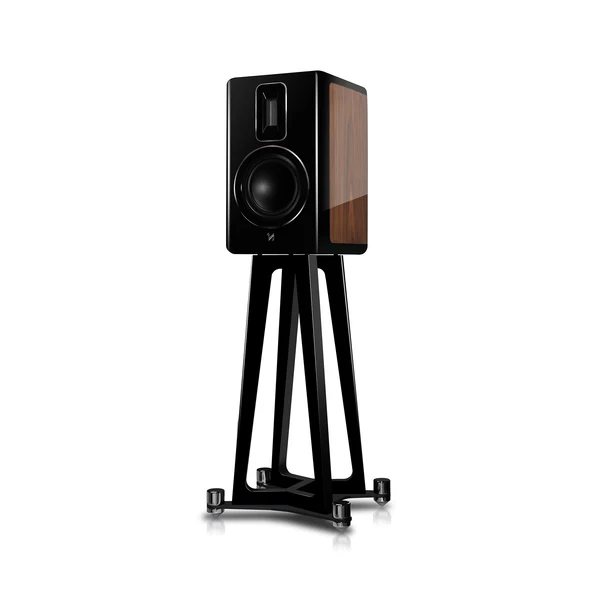

*Stands not included
Specification.
| Enclosure Type | Bass reflex |
| Transducer Complement | 2-way |
| Bass Driver | 165mm advanced fibre cone |
| Midrange Driver | |
| Treble Driver | 27 x 60mm true ribbon |
| AV Shield | No |
| Sensitivity (2.83V @lm) | 86dB |
| Recommended Amplifier power | 30-120w |
| Peak Power Handling | 120w |
| Nominal Impedance | 6Ω |
| Minimum Impedance | 4.1Ω |
| Frequency Response ( + / -3dB) | 54Hz – 24kHz |
| Bass Extension (-6dB) | 40Hz |
| Crossover Frequency | 2.9kHz |
| Cabinet Volume (in litres) | 17.6L |
| Dimensions | |
| Height (on plinth & spikes) | 395mm |
| Width | 246mm |
| Colour | Piano Walnut, Piano Black |
|---|
