Description

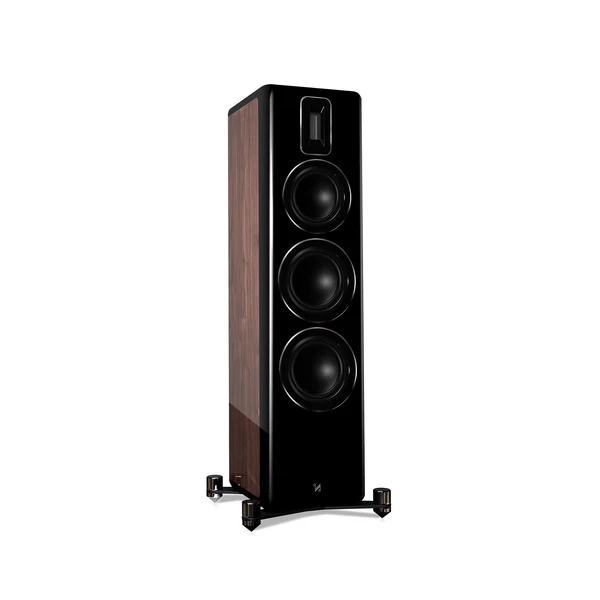

The multi award winning Revela 2 floorstanders from Quad.
A floor-standing speaker incorporating twin 6.5″ woofers and a 6″ midrange mounted on a rigid die-cast chassis.
This combination delivers a rich, controlled bass output with superb dynamic performance.
QUAD’s Director of Acoustics, Peter Comeau, has furthered his ground-breaking engineering work in further developing this Ribbon HF
The advanced ‘True Ribbon’ unit is married to equally high-performance bass and midrange drivers. Again, subject to many years of research, development, and testing.
With over four years of research to bring a new level of musical delicacy, smoothness and ‘hear-through’ performance.
Thus revealing beautiful details of your music collection with a truly breath-taking performance.
The port tube design is precisely positioned with the optimum diameter and flaring to prevent longitudinal resonances from colouring the speaker’s performance.
The Revela series cabinets are skilfully hand-finished to a quality far exceeding that of relative competitors in this class.
Specification
Bass Driver | 2 x 165mm advanced fibre cone |
Midrange Driver | 150mm advanced fibre cone |
Treble Driver | 27 x 60mm true ribbon |
AV Shield |
Sensitivity (2.83V @lm) | 89dB |
Recommended Amplifier power | 20-200w |
Peak Power Handling | 200w |
PeakSPL | 110dB |
Nominal Impedance | 6Ω |
Frequency Response ( + / -3dB) | 40Hz – 24kHz |
Bass Extension (-6dB) | 35Hz |
Crossover Frequency | 650Hz – 3.8kHz |
Height (on plinth & spikes) | 965mm |
Width | 350mm |
Depth(inc Plinth, Grille and Terminals) | 325mm |
