REL T/9x Special Edition

Description

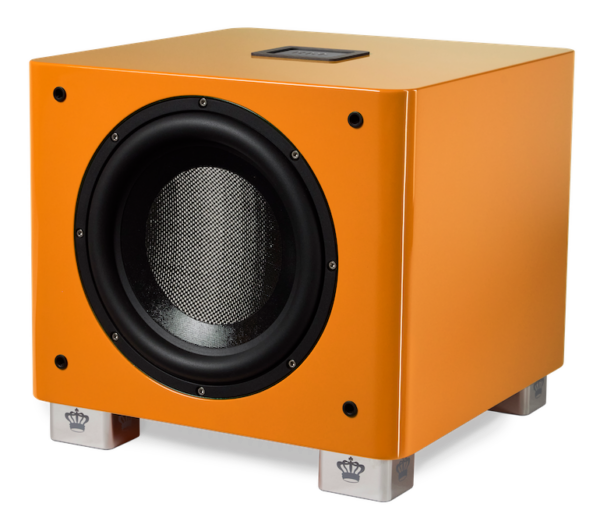

The multi-award winning Rel T/9x Active subwoofer. Now in a range of Special Edition finishes.

The new special edition 9x has even greater output than before, but sacrifices nothing in clarity and transparency to achieve this.

By increasing the cabinet volume, efficiency is improved yielding higher output for no more amplifier power.

Less back pressure inside the cabinet means we can tune for a stiffer, better controlled driver suspension.

Rel have retained the best aspects of their previous design, such as the aluminum center cap responsible for stiffening the lightweight 10” (250mm) cone while adding almost no mass.

The updated combination produces considerably better attack and dynamics with greater transparency.

A powerful 300 watt mosfet amplifier used in the T/9x remains an icon with huge reserves of current.

New driver mosfets that open up performance and transparency and new methods for securing the toroidal transformers mean better performance and superior strength.

REL’s legendary High Level Input connection and fast filters are a significant part of the REL story.

Connecting via the speaker outputs of your amplifier without drawing any power from it may seem like magic, but the real magic lies in the way the sound takes on a natural character.

Unique tuning and special limiters mean the T/x range sounds fresher, faster and more dynamic than before.

Specification

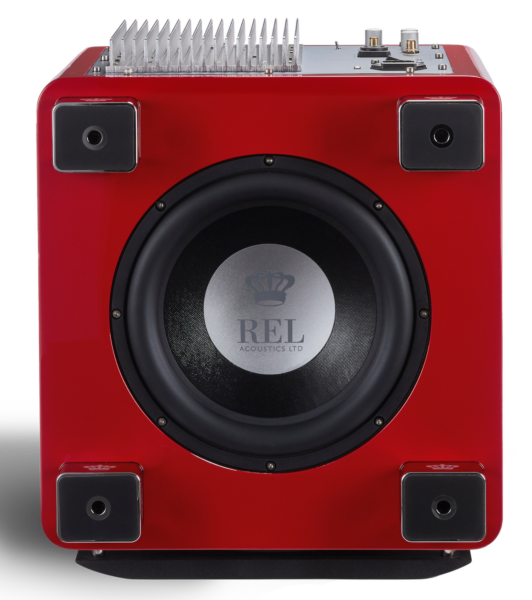

Type - Front-firing active driver, down-firing passive

Active Driver Size & Material - 10 in. (250mm) long-throw, FibreAlloy™ cone, inverted alloy centre cap, steel chassis

Passive Radiator Size & Material - 10 in. (250mm) long-throw, FibreAlloy™ cone, inverted alloy centre cap, steel chassis

Low Frequency Extension  -6dB at 27 Hz

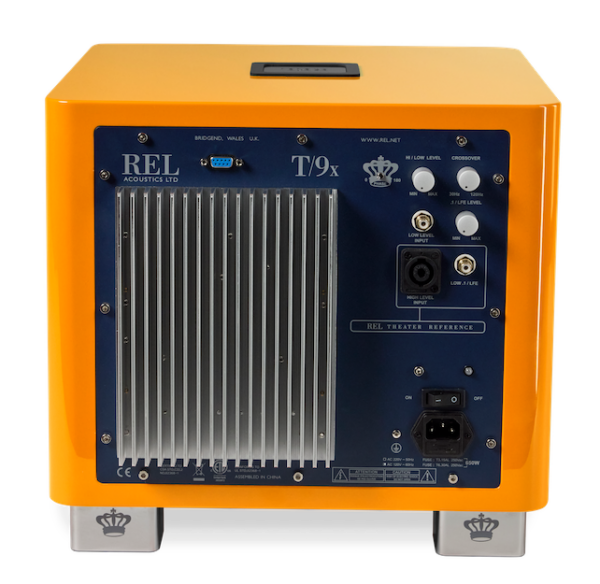

Input Connectors - High Level Neutrik Speakon, Low Level (1) RCA, (1) LFE RCA

Power Output - 300 watts (RMS)

Amplifier Type - Class A/B

W x H x D - 14.5 x 13.4 x 15.5 in., (370 x 340 x 393 mm)

Net Weight - 45.5 lbs. (20.6 kg)
