Description
Wharfedale’s SUPER DENTON is part of Wharfedale’s Heritage series.
Based on classic designs from Wharfedale’s past but brought right up to date with modern drive unit, cabinet and crossover technology.
The industrial design and cabinet engineering required incredible effort to support such a complex array in a small volume, small footprint cabinet.
The midrange and treble units are offset from the centre, which helps maintain the speaker’s compact stature and scatter reflections from the cabinet edges.

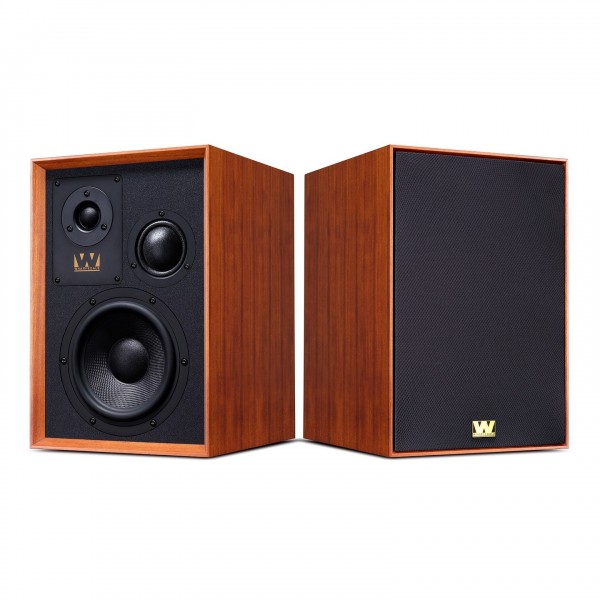

The SUPER DENTON is supplied in matched, mirror-imaged pairs.
With one speaker optimised for the left channel and the other for the right, accurate stereo imaging within a deep, broad soundstage is assured when the speakers are sited appropriately.
As with all models in the Heritage series, the new SUPER DENTON cabinet is wrapped with hand-matched wood veneers for a furniture-grade finish.
Making it one of the world’s smallest three-way hi-fi speakers – if not the smallest, just like the Denton 3 over 50 years ago.
Specification
General description | 3-way vented-box/standmount |
Enclosure type | Bass Reflex |
Transducer complement | 3-way |
Bass driver | 6.5″ (165mm) Black Woven Kevlar Cone |
Midrange driver | 2″ (50mm) Soft Dome |
Treble driver | 1″ (25mm) Soft Dome |
Sensitivity (2.83V @ 1m) | 87dB |
Recommended amplifier power | 25-120W |
Peak SPL | 103dB |
Nominal impedance | 6Ω (Compatible 8Ω) |
Minimum impedance | 3.4Ω |
Frequency response (+/-3dB) | 52Hz – 20kHz |
Bass extension (-6dB) | 40Hz |
Crossover frequency | 940Hz & 4.6kHz |
Cabinet Volume (in litres) | |
Dimensions (mm) | 14.7L |
Height (on plinth) | 360mm |
Width | 246mm |
Depth (with terminals) | (275+20)mm |
Carton size | 660*390*475mm |
Net weight | 9.2kg/pcs |
